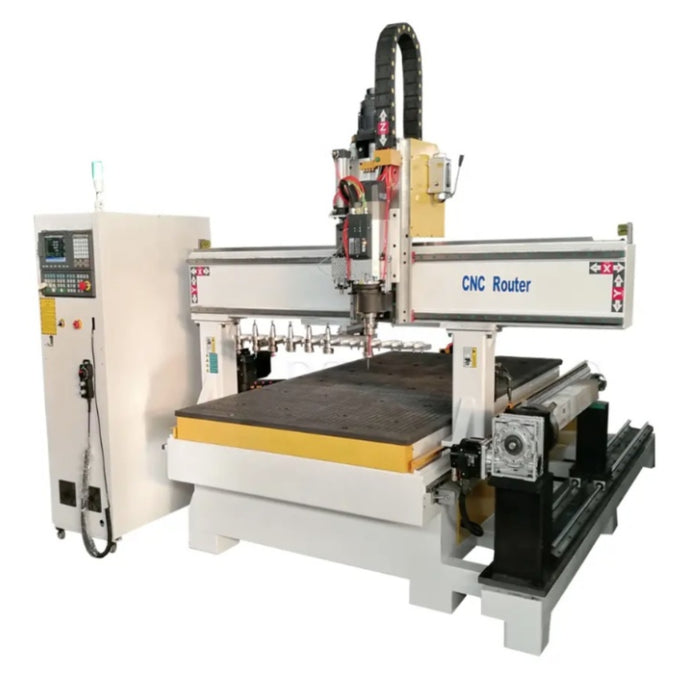

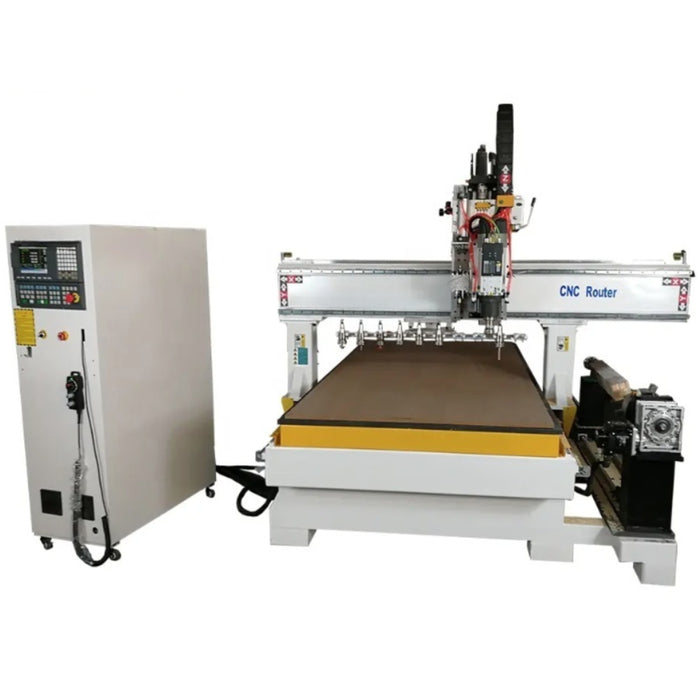

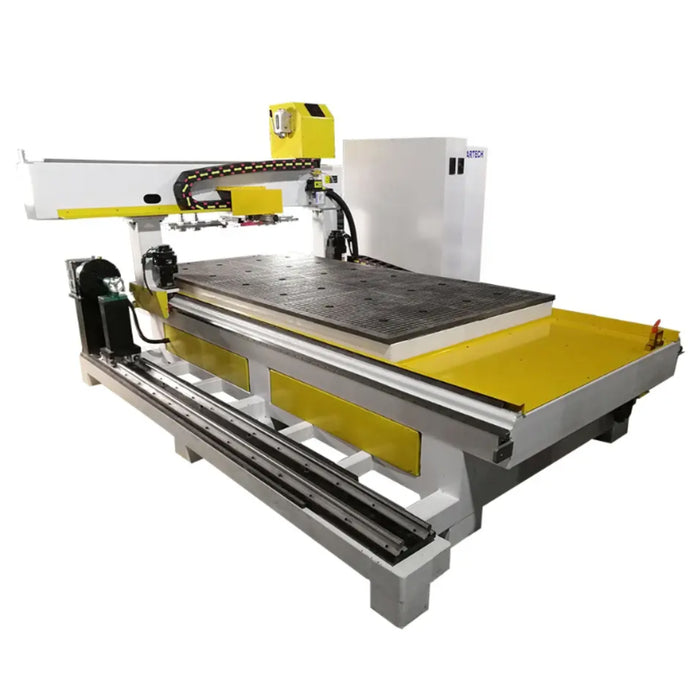

ProCut 2030-A8 MultiTool CNC System

The ProCut 2030-A8 MultiTool CNC System is a high-performance industrial router designed for mass production and complex tooling. Engineered with an automated tool changer, rotary axis, and servo drive system, it delivers precision and power for demanding wood, plastic, and aluminum fabrication environments.

Specifications

• Material: Welded steel chassis with cast gantry supports

• Dimensions: 360 cm (L) x 240 cm (W) x 220 cm (H)

• Features: Auto tool changer, servo motors, rotary axis, vacuum table

• Working Area: 2000 mm x 3000 mm

• Spindle Power: 9.0kW air-cooled ATC spindle

Features

• Automatic Tool Changer: 8-position carousel system

• Rotary Axis: Enables 4-axis cutting for cylinders and columns

• Vacuum Bed: Zoned suction layout with digital controls

• Motion System: Dual servo drives with planetary reducers

• Touchscreen Interface: User-friendly pendant with smart diagnostics

• Industrial Rails: Heavy-duty linear guides and ball screws

Maintenance

• Daily: Remove debris and check vacuum integrity

• Weekly: Grease bearings and calibrate spindle runout

• Annually: Test all drive motors and update software firmware

Warranty

• Structure & Gantry: 5 years

• Spindle & Motors: 2 years
