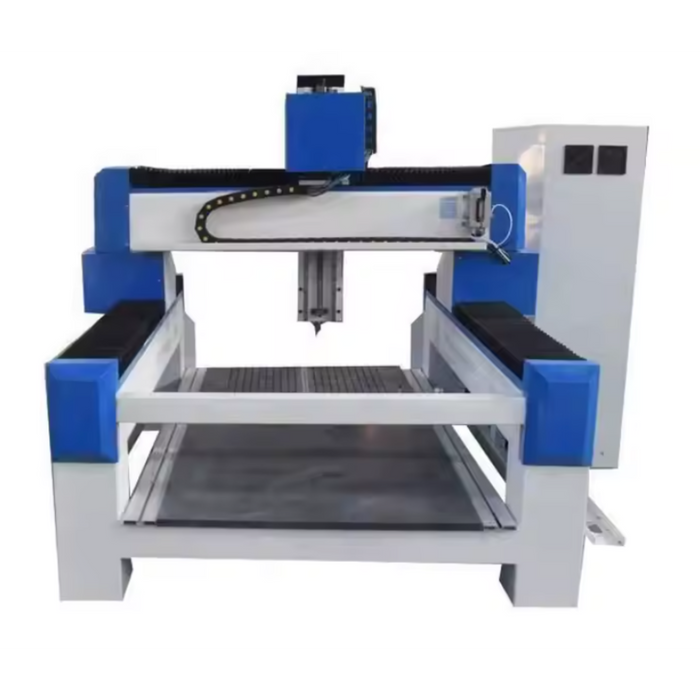

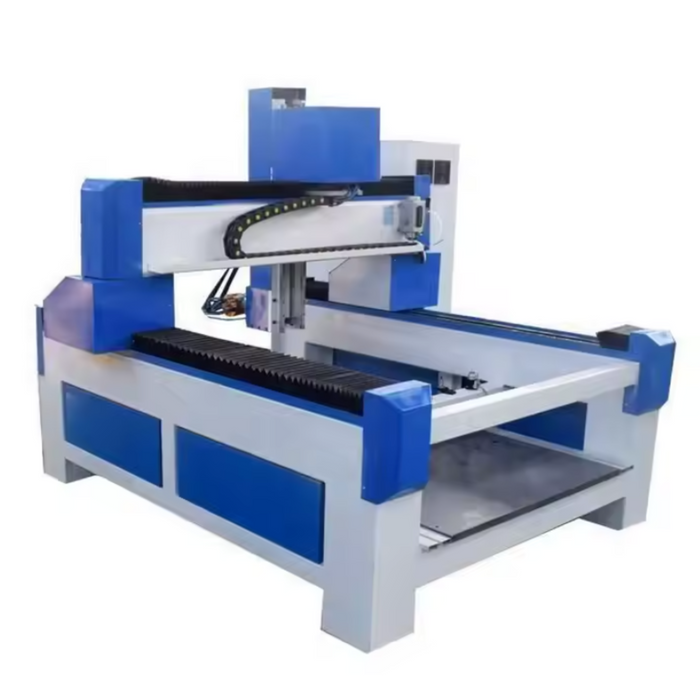

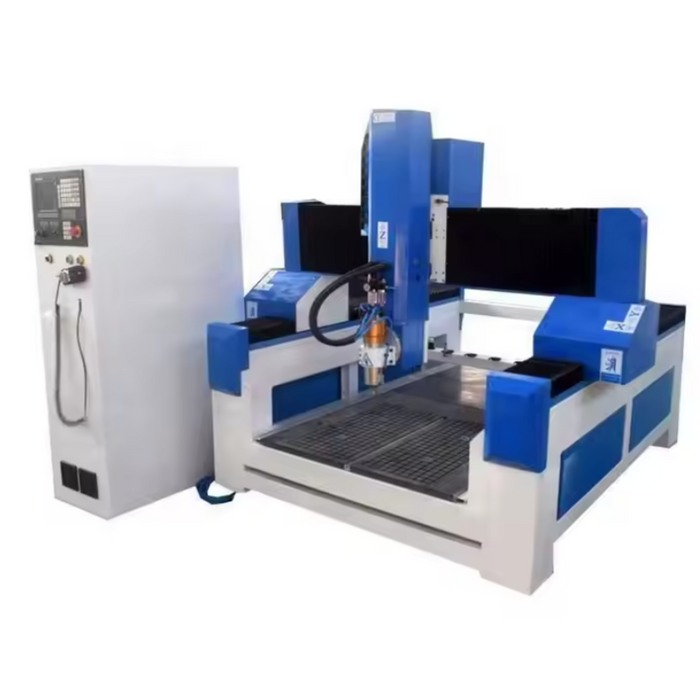

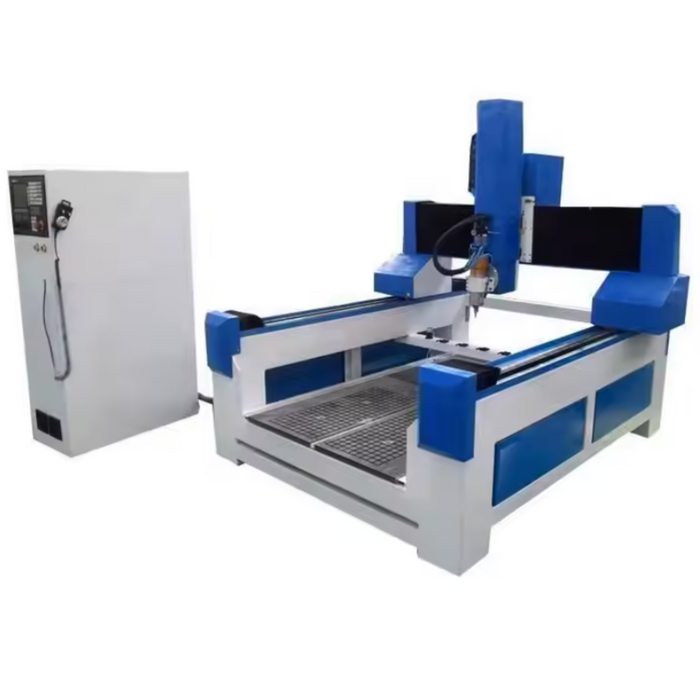

TitanForge HDX-2500 Gantry CNC Mill

The TitanForge HDX-2500 Gantry CNC Mill is a heavy-duty gantry router built for large-scale cutting, carving, and milling applications. Its full-frame steel build, precision linear rails, and high-power spindle make it ideal for both prototyping and industrial fabrication across multiple materials.

Specifications

• Material: Steel-welded frame with aluminum gantry reinforcement

• Dimensions: 260 cm (L) x 220 cm (W) x 190 cm (H)

• Features: 5.5kW spindle, reinforced gantry, ball screw drives

• Working Area: 1500 mm x 2500 mm

• Drive System: Ball screw with anti-backlash preload

Features

• Rigid Frame: Minimizes vibration during high-load cuts

• Powerful Spindle: 5.5kW water-cooled spindle with ER32 collet

• Motion Control: PC-based system with real-time diagnostics

• Multi-Material Capable: Cuts wood, MDF, composites, PVC, and aluminum

• Toolpath Accuracy: ±0.02 mm with reinforced guide bearings

• Cable Management: Enclosed drag chain system on all axes

Maintenance

• Daily: Clear debris from working area and air blow the rails

• Weekly: Re-lubricate ball screws and check cooling flow

• Annually: Perform gantry realignment and recalibration check

Warranty

• Mechanical Frame: 4 years

• Electronics & Spindle: 2 years
